NSV Vibration Control Spring Mount | SMB-B 150 KG | Korea

Description:

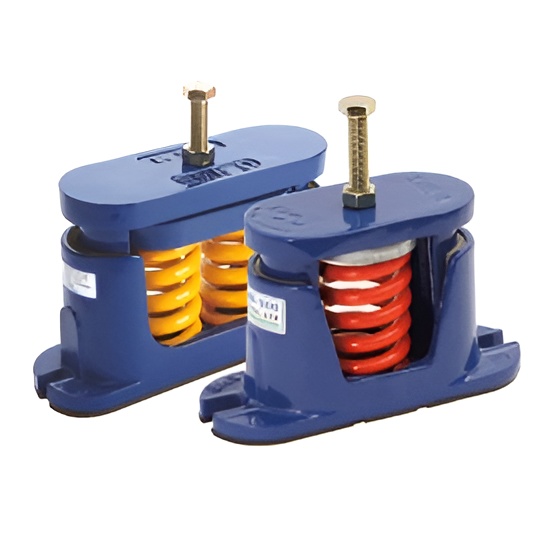

The NSV SMB-B Vibration Control Spring Mount is a heavy-duty enclosed spring mount engineered for superior vibration isolation in industrial and HVAC applications. It features a precisely designed spring housed between upper and bottom casings to absorb vibration and prevent structural transmission during equipment operation.

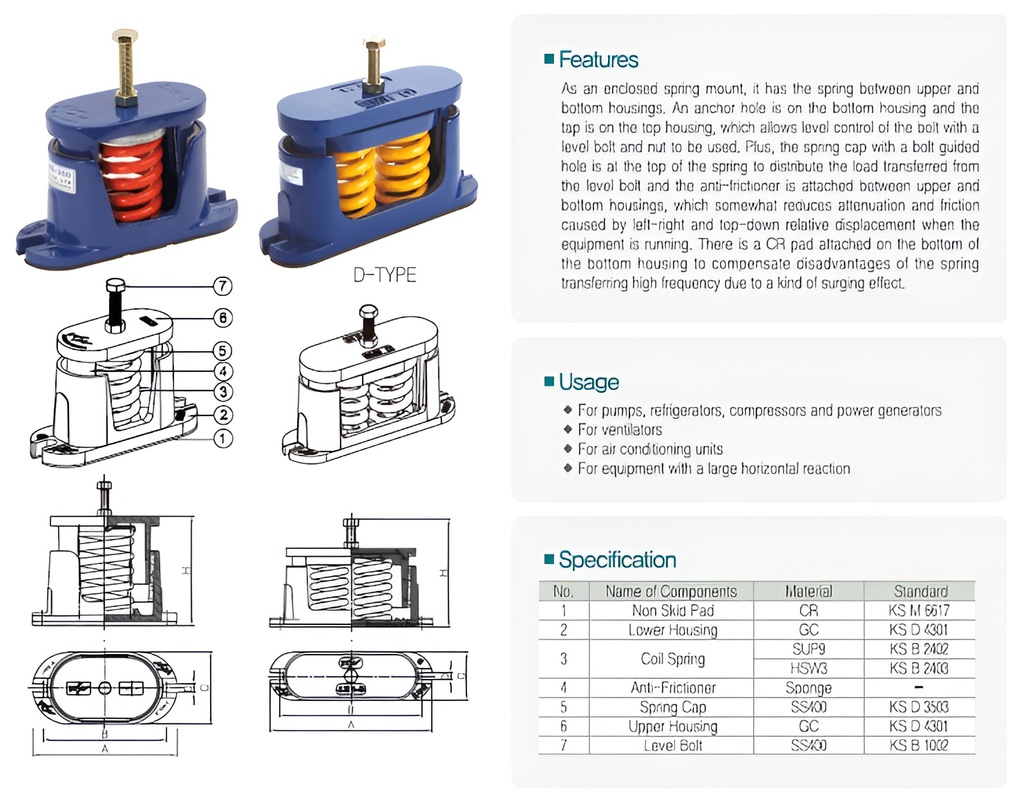

A built-in anchor hole on the bottom housing and a tapped top housing allow for easy leveling adjustments with a bolt and nut system. The spring cap with a guided bolt hole distributes load evenly, while an anti-friction element between housings minimizes friction and attenuation from both vertical and horizontal movement.

For enhanced noise and vibration reduction, a CR pad is attached to the base, compensating for high-frequency transmission caused by spring surge effects. The result is a stable, quiet, and efficient vibration control solution for various heavy-duty machinery.

Ideal for pumps, compressors, power generators, ventilators, and air-conditioning units, the NSV SMB-B provides reliable vibration isolation and prolonged equipment life.

Key Points
⦁ Enclosed Spring Design: Spring positioned between upper and lower housings for secure and efficient vibration isolation.
⦁ Adjustable Leveling System: Top-tapped housing and bottom anchor hole enable precise leveling using bolt and nut assembly.
⦁ Anti-Friction Mechanism: Built-in anti-frictioner minimizes noise and wear caused by horizontal and vertical movement.
⦁ High-Frequency Damping: CR pad at the base absorbs high-frequency vibrations due to spring surge effects.
⦁ Durable Construction: Robust housing and spring ensure long-term performance under continuous vibration.
⦁ Wide Application Range: Suitable for pumps, compressors, power generators, air-conditioning systems, and ventilators.
