NSV Vibration Control Hangar | With Spring | NR-SH-100 KG | Korea

Description

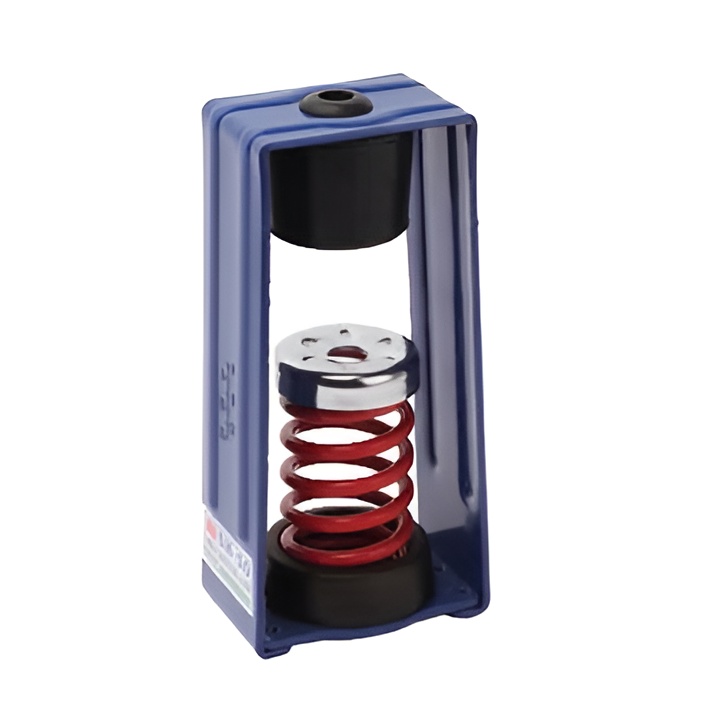

The NSV SH Type Anti-Vibration Spring Hanger (NR-SH-100 KG) is designed to efficiently isolate vibration generated by running equipment, preventing it from transferring to building structures through pipes and ducts. Its robust housing supports the equipment weight while minimizing resonance, ensuring the stability and longevity of your HVAC and piping systems.

Equipped with a coil spring providing 25mm static deflection, this vibration hanger maintains the system’s natural frequency between 3–5 Hz. The top-mounted CR type fixture further blocks high-frequency vibrations from being transmitted through pipes and ducts.

Ideal for axial and in-line fans, machine rooms, air-conditioning ducts, and suspended ceiling systems, it also suits environments requiring precise acoustical control such as studios and laboratories. Ensure high-efficiency vibration control and protect your structural integrity with the NSV SH Type Anti-Vibration Spring Hanger.

Key Points
⦁ Efficient Vibration Isolation: Prevents vibration from equipment and thermal expansion in pipes and ducts from transferring to the structure.
⦁ Robust Design: Strong housing supports equipment weight while minimizing resonance.
⦁ Optimal Frequency Control: Coil spring with 25mm static deflection maintains natural frequency of 3–5 Hz.
⦁ High-Frequency Suppression: CR type top fixture prevents high-frequency vibrations from reaching the building structure.
⦁ Versatile Applications: Suitable for HVAC systems, axial/in-line fans, machine rooms, suspended ceilings, and acoustic labs.
⦁ Durable & Reliable: Built to withstand continuous operation without compromising system stability.
