Ebara Submersible Sump Pump with Strainer | 50DS53.7 | Japan

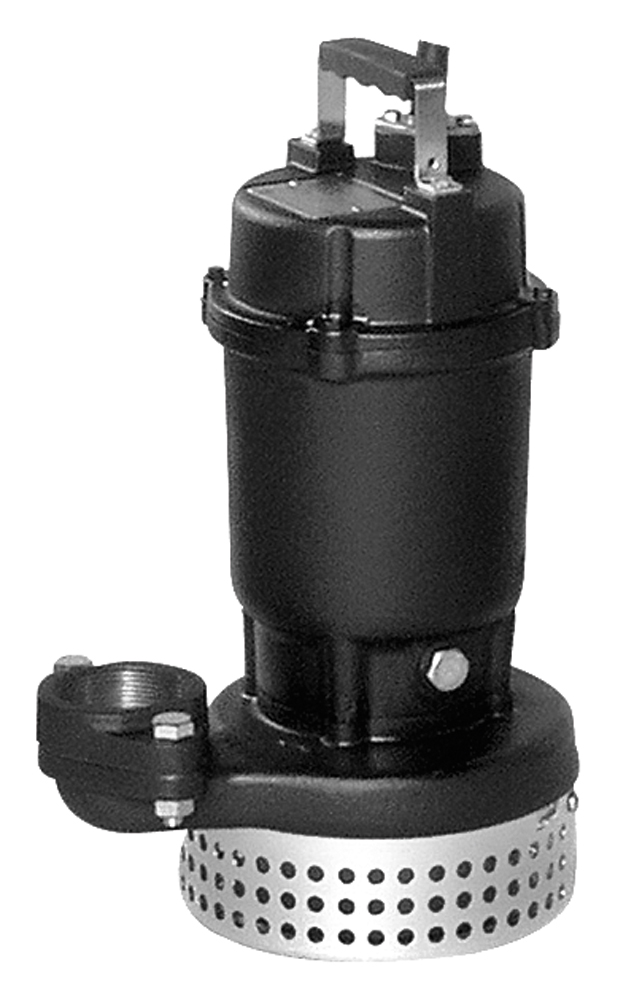

Ebara 50DS53.7 Three-Phase Submersible Sump Pump with Strainer – Semi-Open Impeller, Cast Iron, High Efficiency – Japan

Description:
The Ebara 50DS53.7 is a reliable three-phase manual submersible sump pump designed for efficient water transfer and drainage. Equipped with a semi-open impeller and strainer, it delivers high head and efficiency while preventing blockages, making it ideal for applications such as sump drainage, lift shafts, tanks, irrigation, and general water transfer.

Constructed with cast iron body and impeller and an AISI 403 shaft, this pump ensures durability and long service life. The mechanical seals (SiC/SiC/NBR pump side, Carbon/Ceramic/NBR motor side) provide leak-proof operation. The pump is capable of handling solids up to 5 mm diameter and liquid temperatures up to 40°C, with a maximum submergence of 8 m.

The Ebara 50DS53.7 is suitable for purification tank drainage, rain and spring water drainage, and water supply, delivering reliable performance in both industrial and domestic applications. Its robust design, high efficiency, and easy maintenance make it a trusted solution for demanding pumping tasks.

Key Points:
⦁ Efficient Semi-Open Impeller – Provides high heads and pumping efficiency.
⦁ Built-In Strainer – Prevents blockages and ensures smooth operation.
⦁ Durable Construction – Cast iron pump body and impeller; AISI 403 shaft for long-lasting performance.
⦁ Reliable Mechanical Seals – SiC/SiC/NBR (pump side) and Carbon/Ceramic/NBR (motor side) for leak-proof operation.
⦁ Maximum Performance – Handles solids up to 5 mm, liquid temperatures up to 40°C, and submergence up to 8 m.
⦁ Three-Phase Motor – 400V/3/50, FLC 7.8 A, SC 53 A with 2-pole design and IP68 protection.
⦁ Versatile Applications – Ideal for sump drainage, lift shafts, tanks, irrigation, water supply, and purification tank drainage.
⦁ High Fiber Handling – Supports fibers up to 50 mm (all DS models) for industrial or domestic use.
⦁ Safe & Reliable – Insulation Class F, robust design suitable for continuous operation.
