Johnson Controls Touchscreen Thermostat | T9200-TF20-1JSO | Frameless Display

Description:
The Johnson Controls T9200-TF20-1JSO is a modern, intelligent thermostat designed for 2-pipe and 4-pipe Fan Coil Unit (FCU) systems, operating at 230V and supporting 3-wire on/off valves with a 5A load capacity. Engineered with a sleek frameless touchscreen interface, this model combines elegant aesthetics with high-performance control, making it ideal for premium spaces such as hotels, offices, hospitals, and luxury residences.

Part of the advanced T9000 Series, this thermostat features energy-saving functions like occupancy (eco) mode, delay on/off, and ECM fan control to help reduce motor energy usage by 30–50%. The durable design, high-grade electronics, and multiple international certifications (CE, RoHS, BTL, RCM, etc.) ensure safety, long life, and seamless integration with modern building automation systems.

Key Features:
⦁ Model: T9200-TF20-1JSO – 230V Touchscreen Thermostat
⦁ Application: Controls 2-pipe & 4-pipe FCU systems
⦁ Valve Support: 3-wire on/off valve compatibility (5A max load)

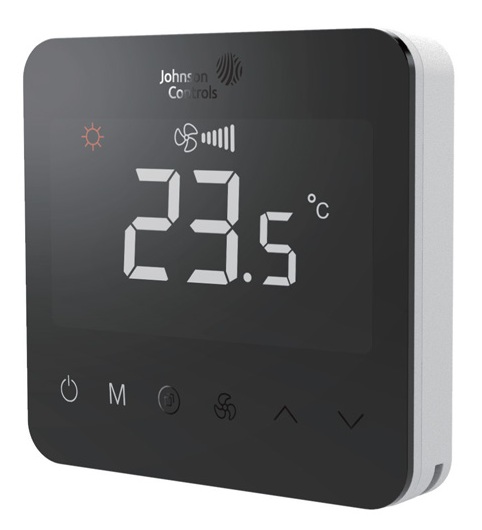

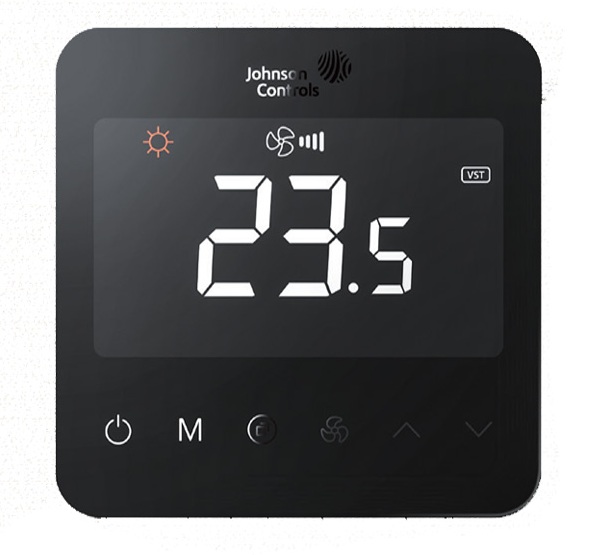

⦁ Interface: Large frameless touchscreen with intuitive operation
⦁ Relay Life: Rated for 100,000+ on/off cycles for extended durability
⦁ Energy-Saving: Supports occupancy (eco) mode with PIR, door card, or dry contact input
⦁ Noise Reduction: Optimized for ECM motors – reduces fan noise by 1–2 dB(A)
⦁ Efficiency: Cuts motor energy consumption by up to 50%
⦁ Certifications: CE, RCM, RoHS, REACH, BTL, WEEE, GB – eco-safe and reliable
⦁ Smart Functions: Delay start/stop, cooling/heating/floor heating modes
⦁ Integration Ready: Supports Modbus or BACnet (model dependent) for BMS systems
⦁ Ideal for: Hotels, hospitals, corporate buildings, luxury residential projects
