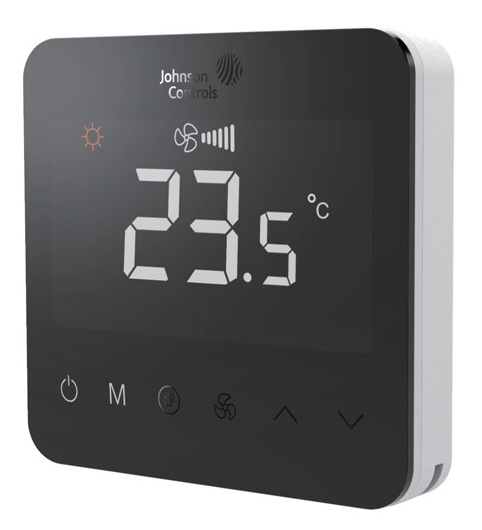

Johnson Controls Touchscreen Thermostat | T9200-TB21-1JSO | Frameless Display

Description:

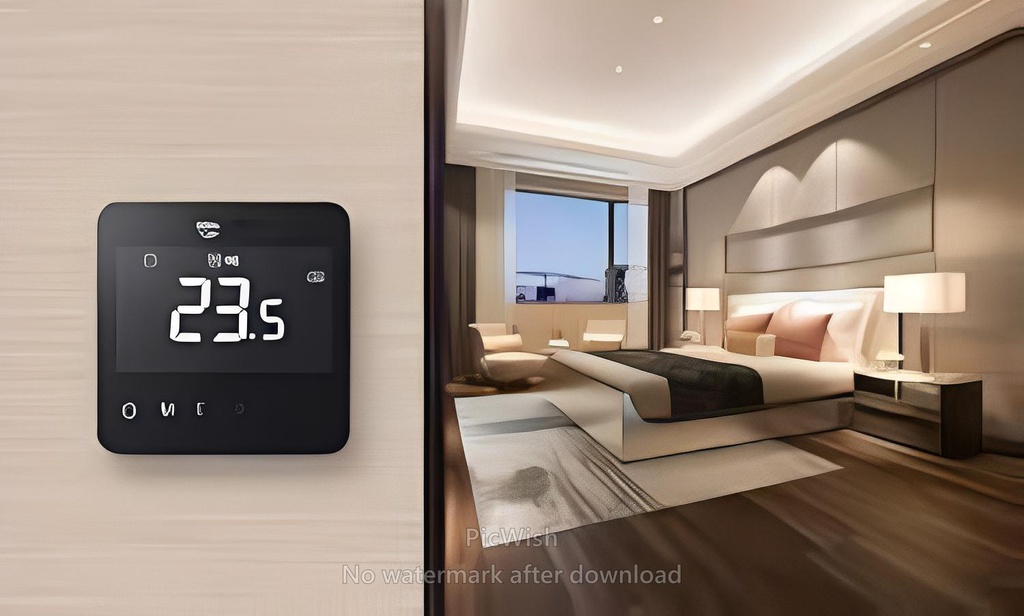

The Johnson Controls T9200-TB21-1JSO is a premium, intelligent touchscreen thermostat engineered for precise control of 2-pipe and 4-pipe FCU (Fan Coil Unit) systems. Designed with a sleek frameless display, this thermostat features a highly responsive touch interface and modern aesthetics, ideal for luxury offices, hotels, private hospitals, and high-end residences.

Powered at 230V, the T9200 model supports proportional control (0–10V) and is optimized for ECM motors, reducing energy consumption by 30–50% and lowering fan noise by up to 2 dB(A). With 3-wire on/off valve compatibility, this thermostat provides versatile integration into a variety of HVAC and building automation systems.

Certified with CE, RoHS, BTL, REACH, and RCM, it ensures long-term durability, energy efficiency, and eco-friendliness. Additional smart features include occupancy mode, delay on/off, support for Modbus/BACnet protocols, and multiple control modes such as cooling, heating, ventilation, and floor heating.

Key Features:
⦁ Model: T9200-TB21-1JSO – 230V Touchscreen Thermostat
⦁ Supports: 2-pipe / 4-pipe FCU systems, ECM fans, on/off 3-wire valves
⦁ Control Signal: Proportional 0–10V output for precise motor control
⦁ Energy Efficient: Saves 30–50% energy and reduces motor noise by up to 2 dB(A)
⦁ Smart Features: Occupancy (eco) mode via door card, PIR sensor, or dry contact

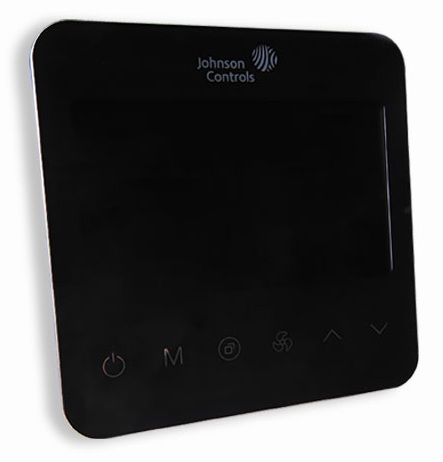

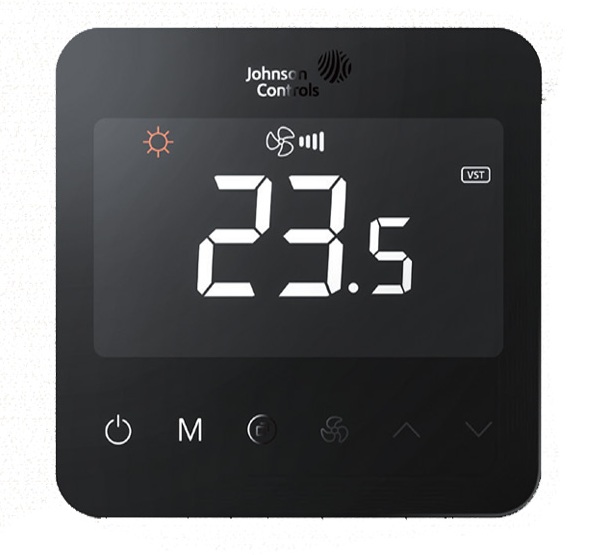

⦁ Display: Frameless, high-resolution touchscreen with intuitive user interface
⦁ Compatible With: Modbus / BACnet integration for advanced building automation
⦁ Durability: Relay rated for 100,000+ cycles; CE-compliant flame-retardant housing
⦁ Certifications: CE, RCM, RoHS, REACH, BTL, WEEE, GB – ensures safety & compliance
⦁ Application Range: Fan coil units, AHUs, boilers, floor heating, air purification units
⦁ Multiple Modes: Heating, cooling, ventilation, and floor heating control
