Carrier Ducted Split AC | 2 Ton Top Discharge | Scroll Compressor | UAE/Mexico

Carrier Ducted Split-System Air Conditioning, Top Discharge, Scroll Compressor, (R-410A) Refrigerant, UAE/Mexico

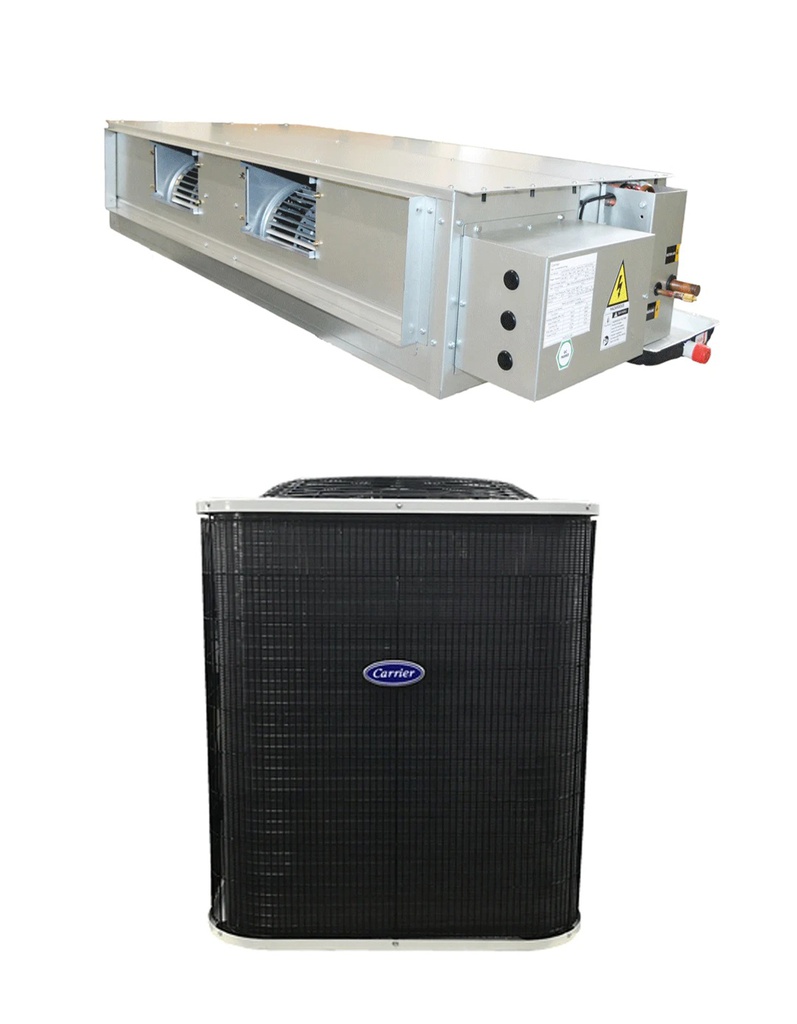

Model : 42TKS024-71UCR1/38CKM024-X-7 (2 Ton Indoor & Outdoor Unit)

Description:

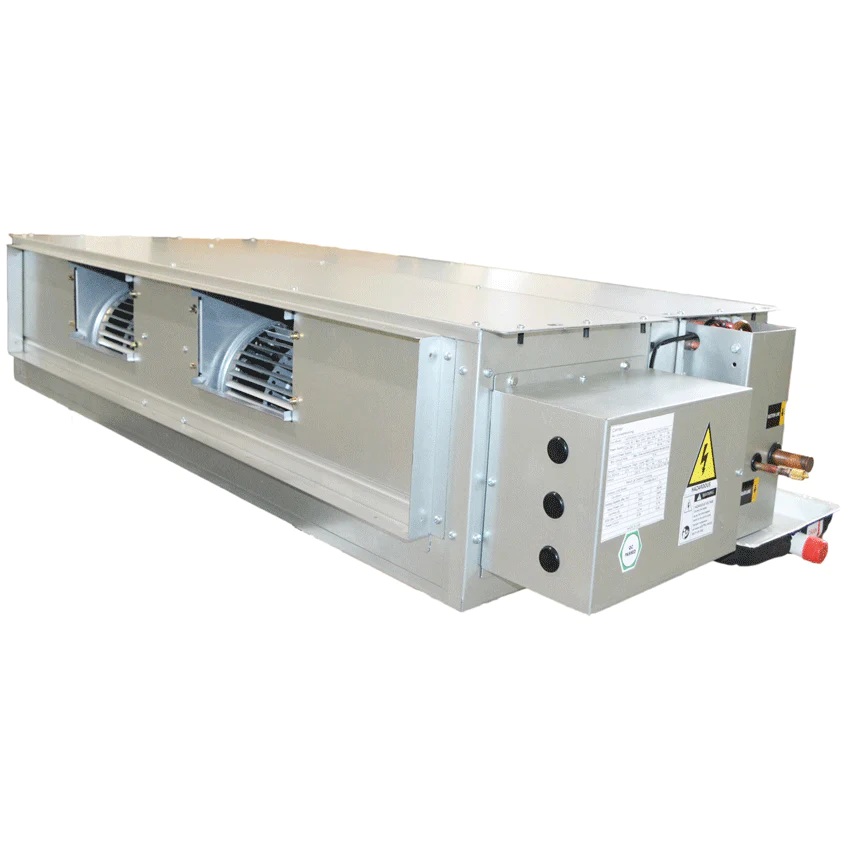

42TKS024-71UCR1 model is a 2.0-TR fan coil unit with a cooling capacity of 24000 Btu/h and a nominal air flow of 815 CFM, suitable for horizontal under-ceiling applications. It operates on a power supply of 220-240V, 50/60Hz; the minimum voltage is 207 and the maximum voltage is 253. The fan’s full load amps (FLA) are 1.3 A. It has a nominal air flow suitable for low to medium range requirements. The motor rated power is 125 watts, and it operates at three speeds. The coil is made of inner grooved copper tubes with aluminium fins with louvered profile. The refrigerant metering device is an orifice. Piston size is 57 and coil connection type is soldered. The unit is equipped with one 1″-washable aluminium filter. The filter size is 900 x 215 mm. Sound pressure levels at different speeds are 50/45/39 dBA (H/M/L). The unit dimensions are 1240 mm (W) x 645 mm (D) x 275 mm (H), with a net weight of 33 kg and a gross weight of 36 kg. The suction connection size is 5/8 inches, and the liquid connection size is 3/8 inches. The matching outdoor unit model is 38CKM024-X-7.

Key Points:
⦁ Refrigerant: R-401A
⦁ Tons: 2.0

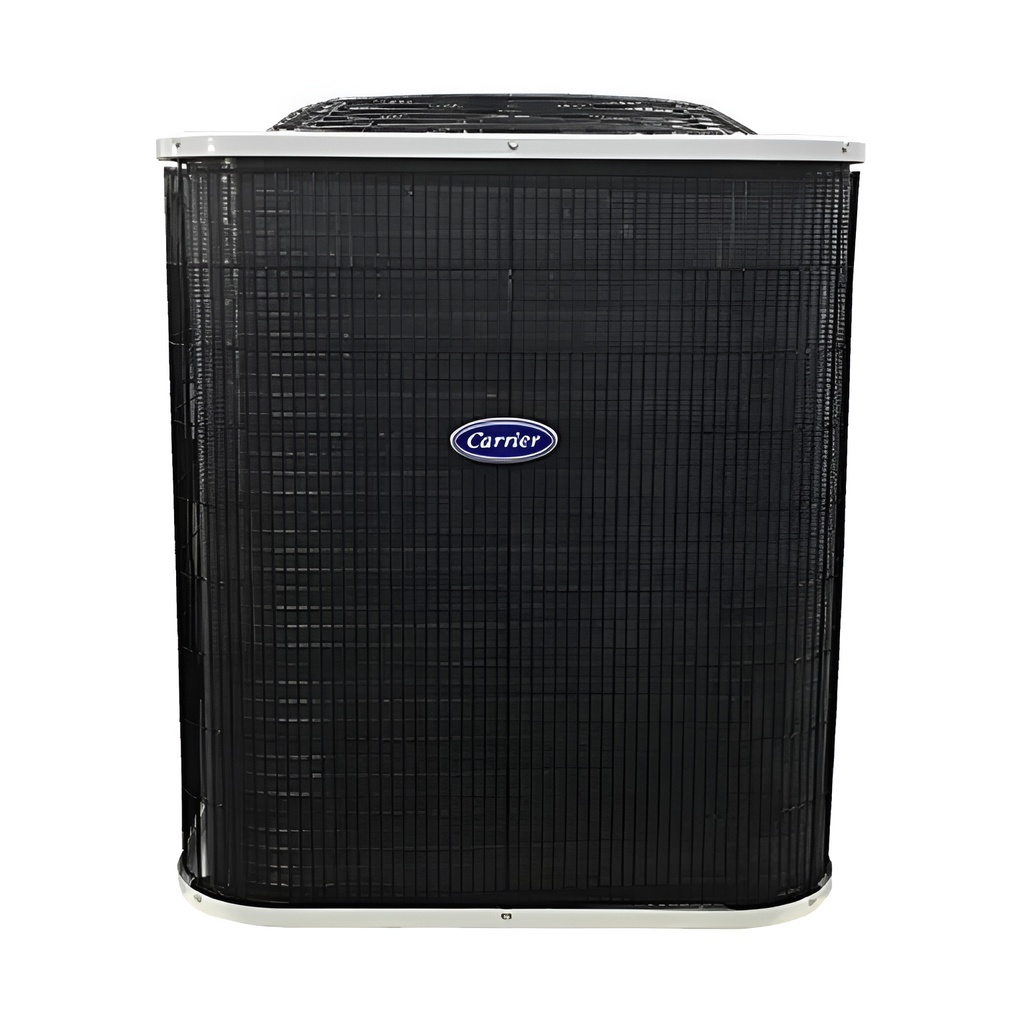

⦁ Condensing Unit: 38CKM024-X-7
⦁ Fan Coil Unit: 42TKS024-71UCR1
⦁ TKW: 5.3
⦁ L/S: 385
⦁ CU Type: Top
⦁ Dimension (L x W x H)in mm: 654 x 654 x 729/FCU: 1240 x 645 x 275
⦁ EER 35C : 12.7
⦁ EER 46C: 8.3
⦁ CU Weight: 63
⦁ FCU Weight: 33
⦁ CU Power Supply (V/Ph/Hz): 230 / 1 / 50
⦁ FCU Power Supply (V/Ph/Hz: 230 / 1 / 50
