Carrier Ducted Split AC | 1.5 Ton Top Discharge | Scroll Compressor | Mexican

Carrier Ducted Split-System Air Conditioning, Top Discharge, Scroll Compressor, (R-410A) Refrigerant.

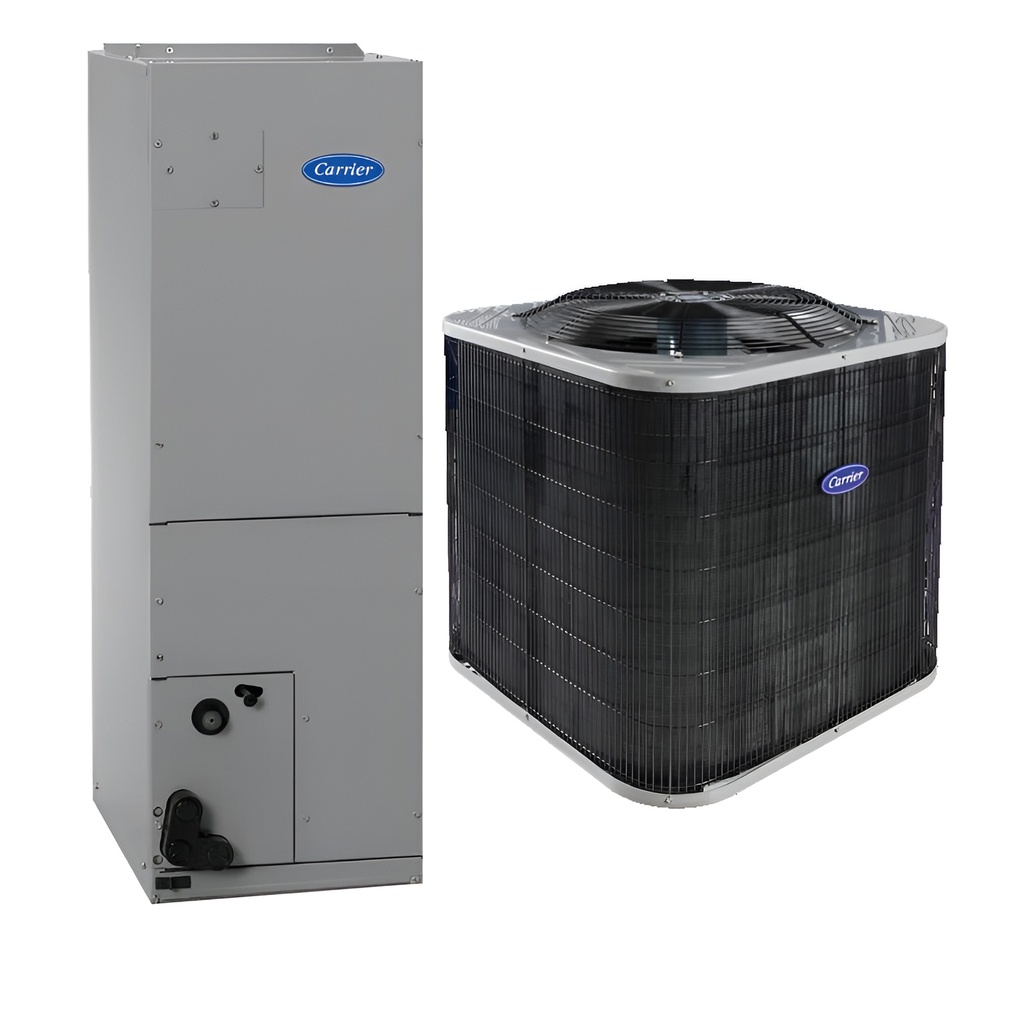

Model: FB4CSL018L00 / 38CKM018-X-7 (1.5 Ton Indoor & Outdoor Unit, Mexican)

Description:
38CKM/FB4C - Ducted Split-System Puron® (R-410A) Refrigerant - 1.5 TO 5.0 nominal tons

38CKM 50 Hertz energy efficient air conditioner incorporates innovative technology to provide reliable summer cooling performance. Built into these units are the features most desired by customers today, including EER ratings of up to 13 at the T1 condition when used with components designated by the manufacturer.

The 50 Hz FB4C fan coil has the proven technology of Carrier fan coil units with Puron refrigerant as well as vertical and horizontal applications. Downflow installations require an accessory package.

The design features contoured condensate pans with rugged drain connections, ensuring that little water is left in the unit at the end of the cooling duty cycle. The lack of standing condensate and corrosion free pans improves IAQ and product life, features homeowners appreciate.

Key Points:

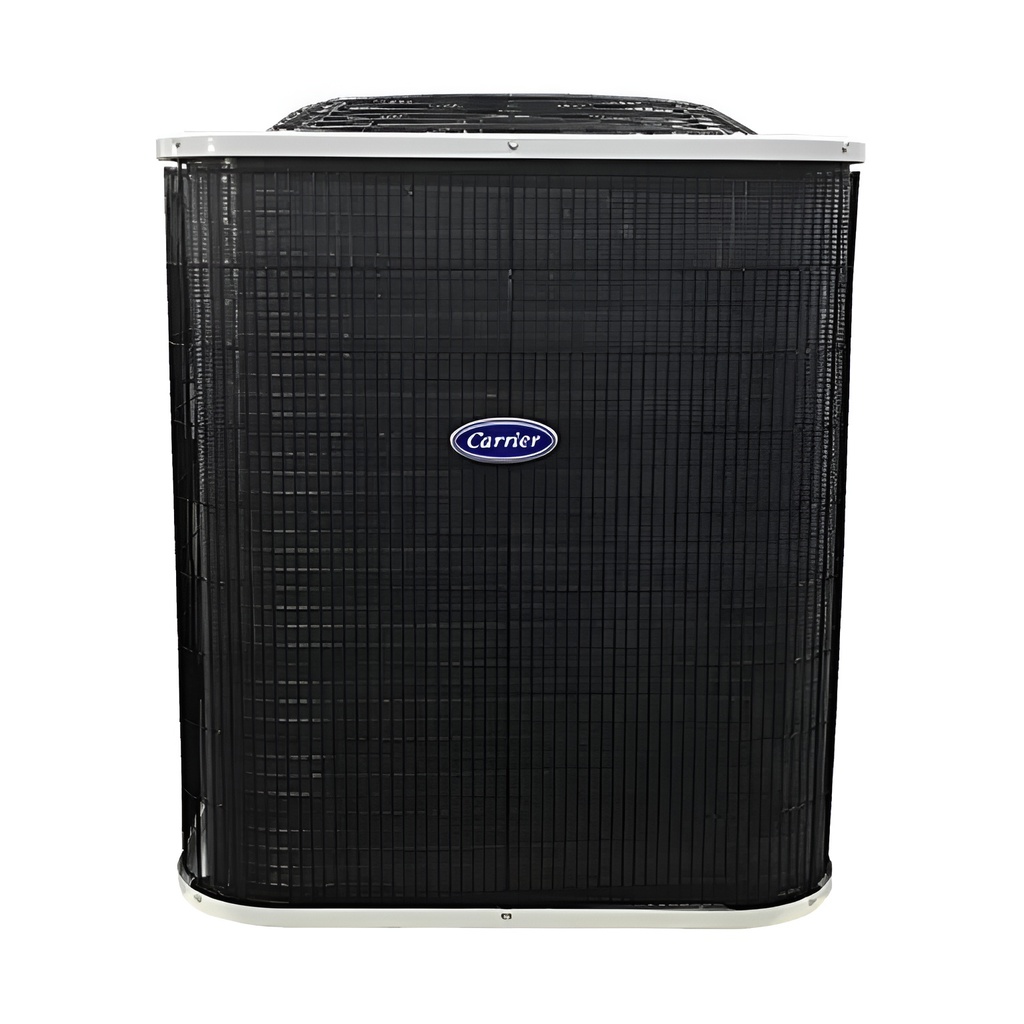

Outdoor Unit – 38CKM
⦁ Designed for 50Hz applications, delivering dependable cooling for hot climates.
⦁ Energy-efficient operation with EER up to 13 at T1 condition.
⦁ High and low pressure switches for system protection and reliability.
⦁ Factory-supplied filter drier for clean, moisture-free refrigerant flow.
⦁ Dense wire grille coil guard provides superior condenser protection.

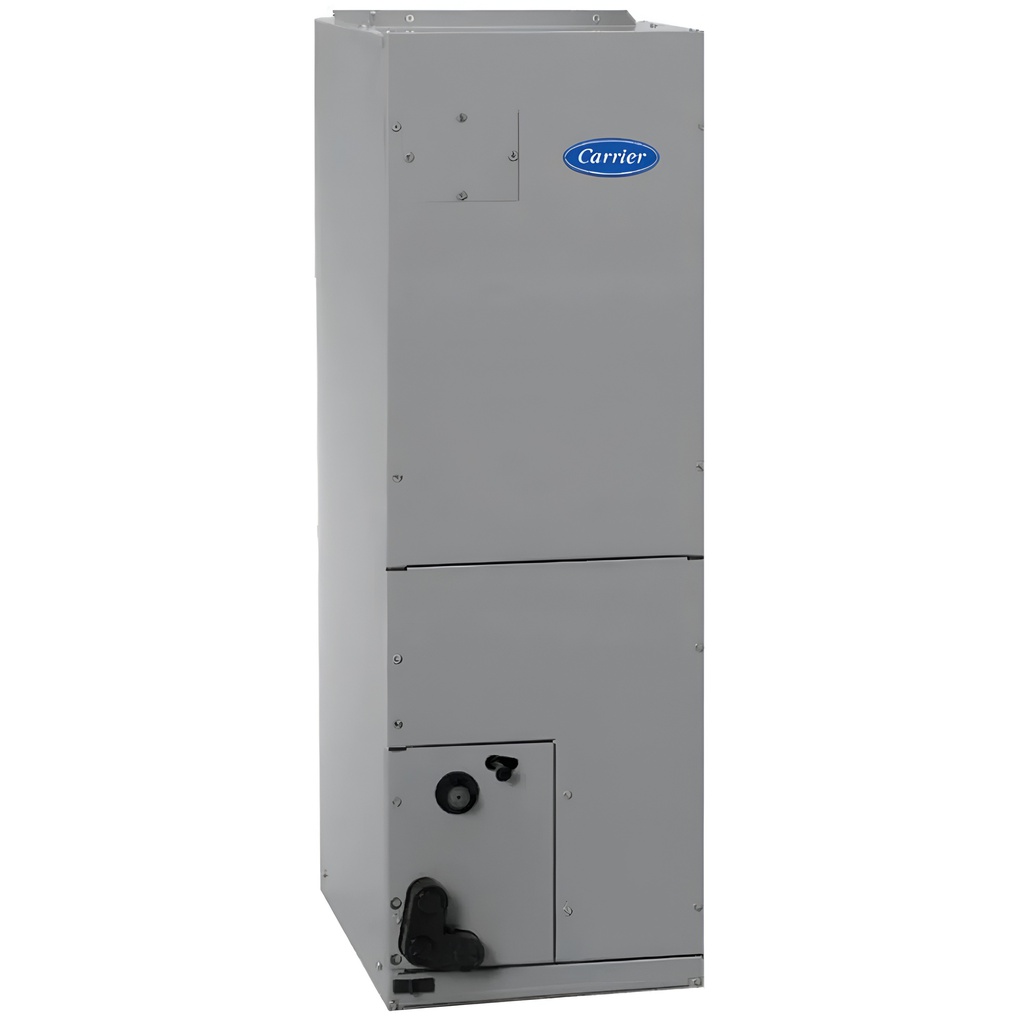

Indoor Unit – FB4C
⦁ Multi-position design — supports vertical, horizontal, and downflow configurations.
⦁ Equipped with ECM blower motor for quiet, variable-speed airflow.
⦁ Adjustable TXV (Thermostatic Expansion Valve) for optimized refrigerant control.
⦁ 5 blower speed taps allow airflow customization to suit installation needs.
⦁ Contoured, corrosion-resistant condensate pan prevents standing water and improves IAQ.
